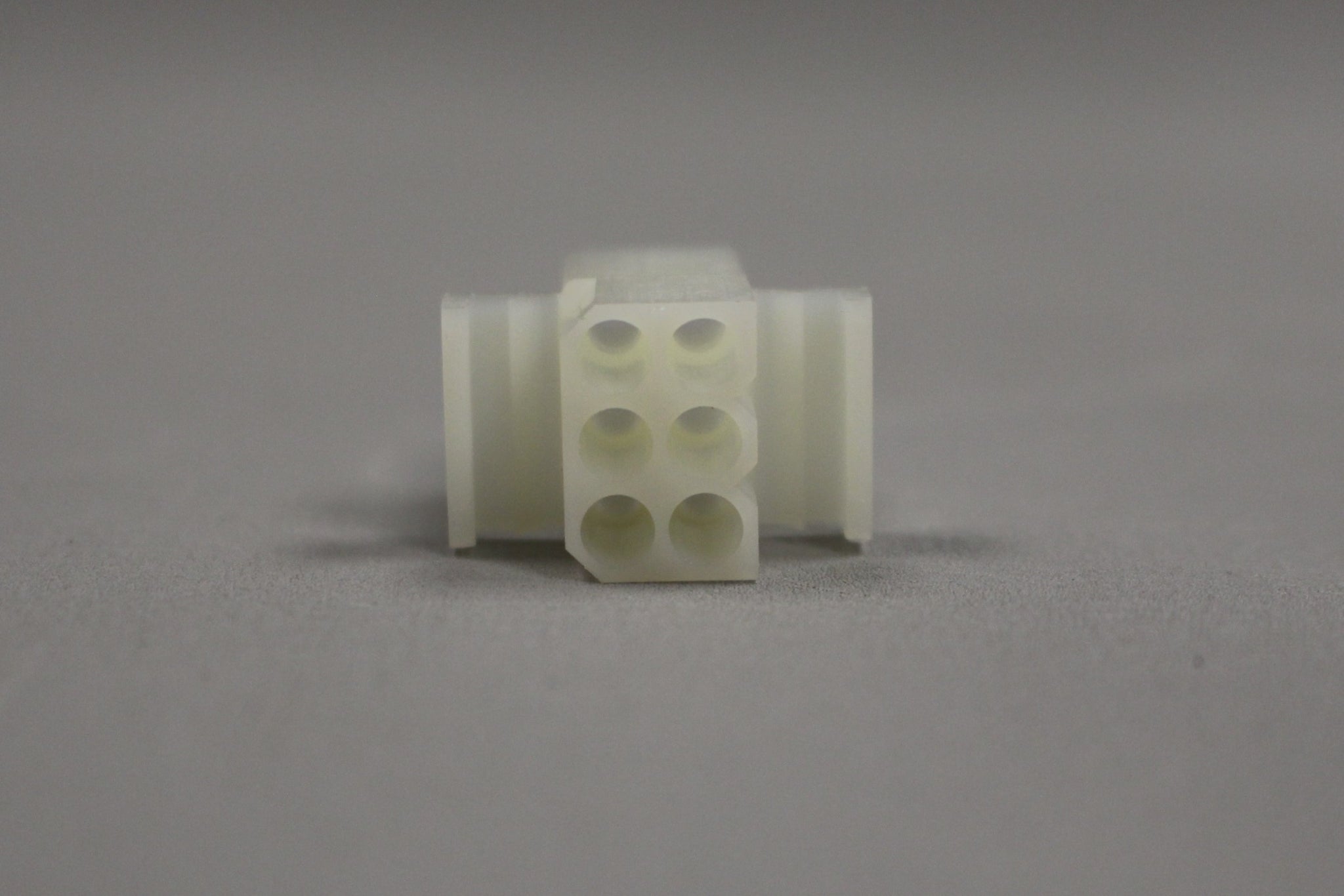

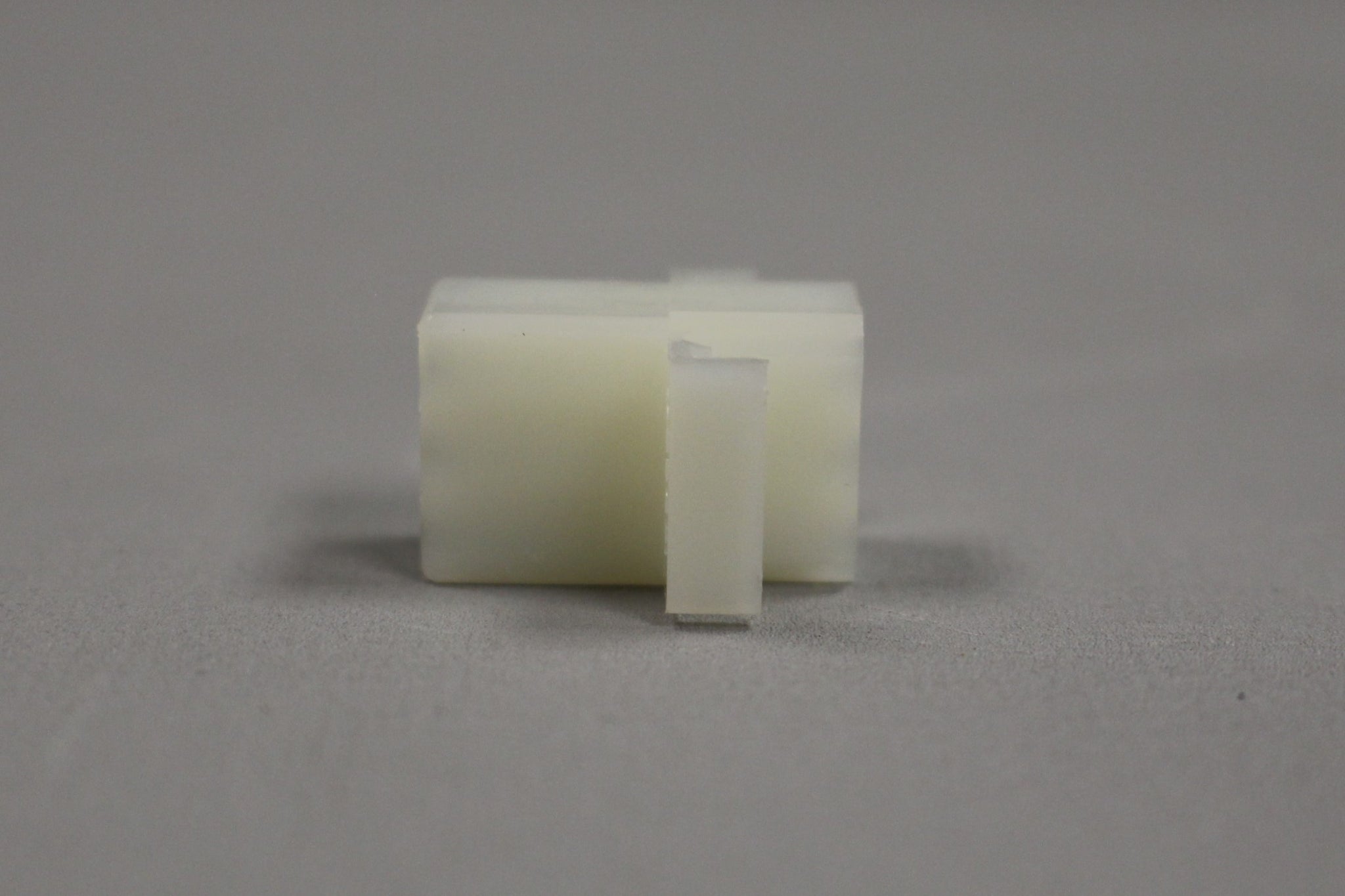

Electrical Plug Connector Body

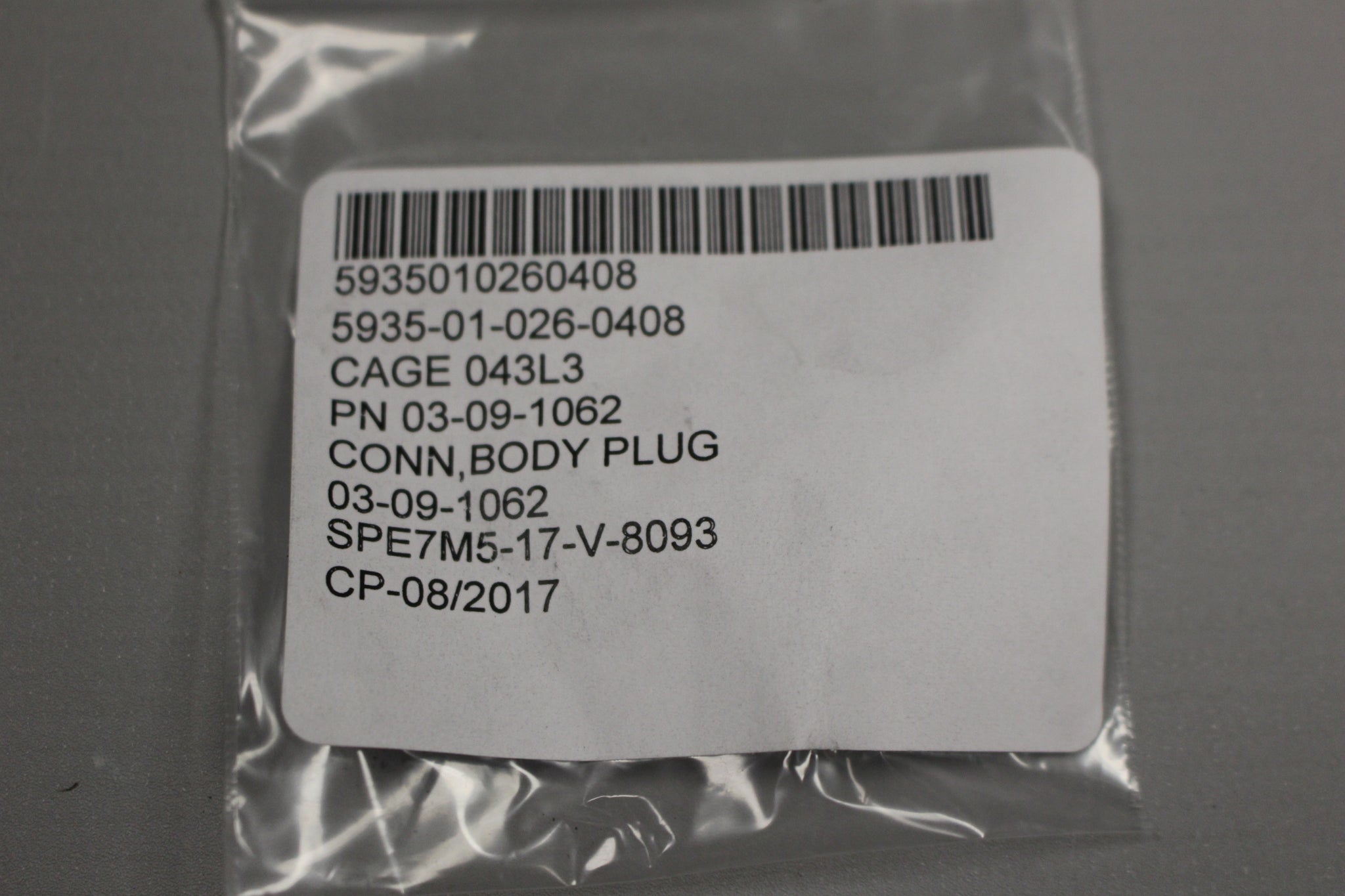

NSN 5935-01-026-0408
Part Numbers: 03-09-1062, 41A00091A04, 205066
New
Body Style: Rectangular shape
Overall Length: 0.750 inches
Overall Height: 0.969 inches
Overall Width: 0.695 inches
Body Length: 0.733 inches
Mating End Quantity: 1
Contact Position Arrangement Style: 6 single mating end
Polarization Method: Mating end
Connector Locking Method: Detente
Insert Material: Plastic polyamide single mating end
Special Features: Tab mounted
