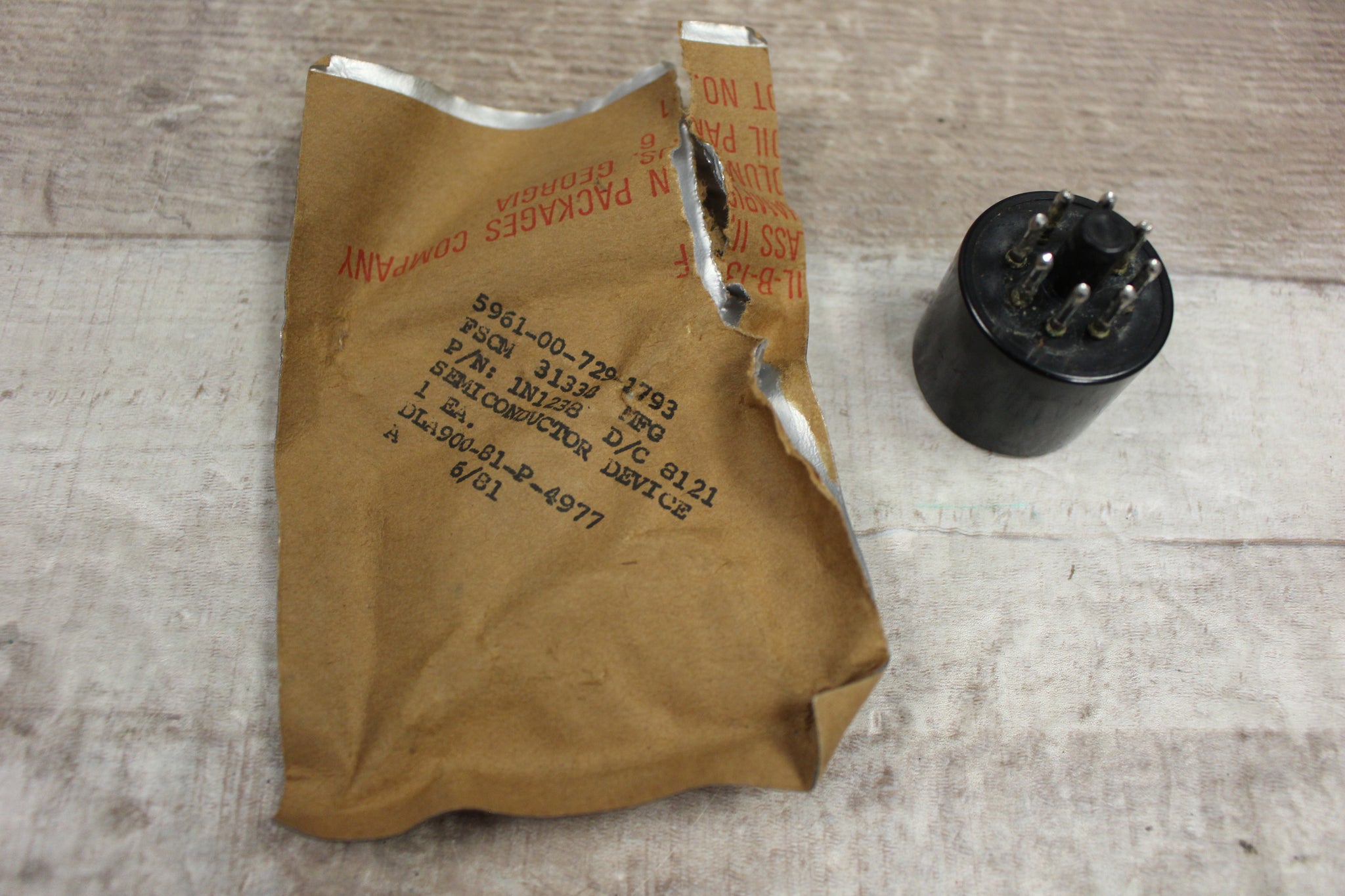

Semi Conductor Device
NSN: 5961-00-729-1793
Part Numbers: 10345803, 1N1238, 224099, S5018
New - Open Box
Overall Length: 2.650 inches nominal
Overall Diameter: 1.250 inches nominal
End Item Identification: Navigation radio set; blue ridge class LCC-19; surface minesweeping systems; advance air traffic control
Circuit Connection Style Designator: Center tap 1 phase
Absolute Maximum Voltage Rating in Volts per Characteristic: 1600.0 repetitive peak reverse voltage
Absolute Maximum Current Rating per Characteristic: 0.75 amperes average forward current averaged over a full 60-HZ cycle
Mounting Method: Plug-in
Material: Silicon
Terminal Type and Quantity: 1 standard tube base
