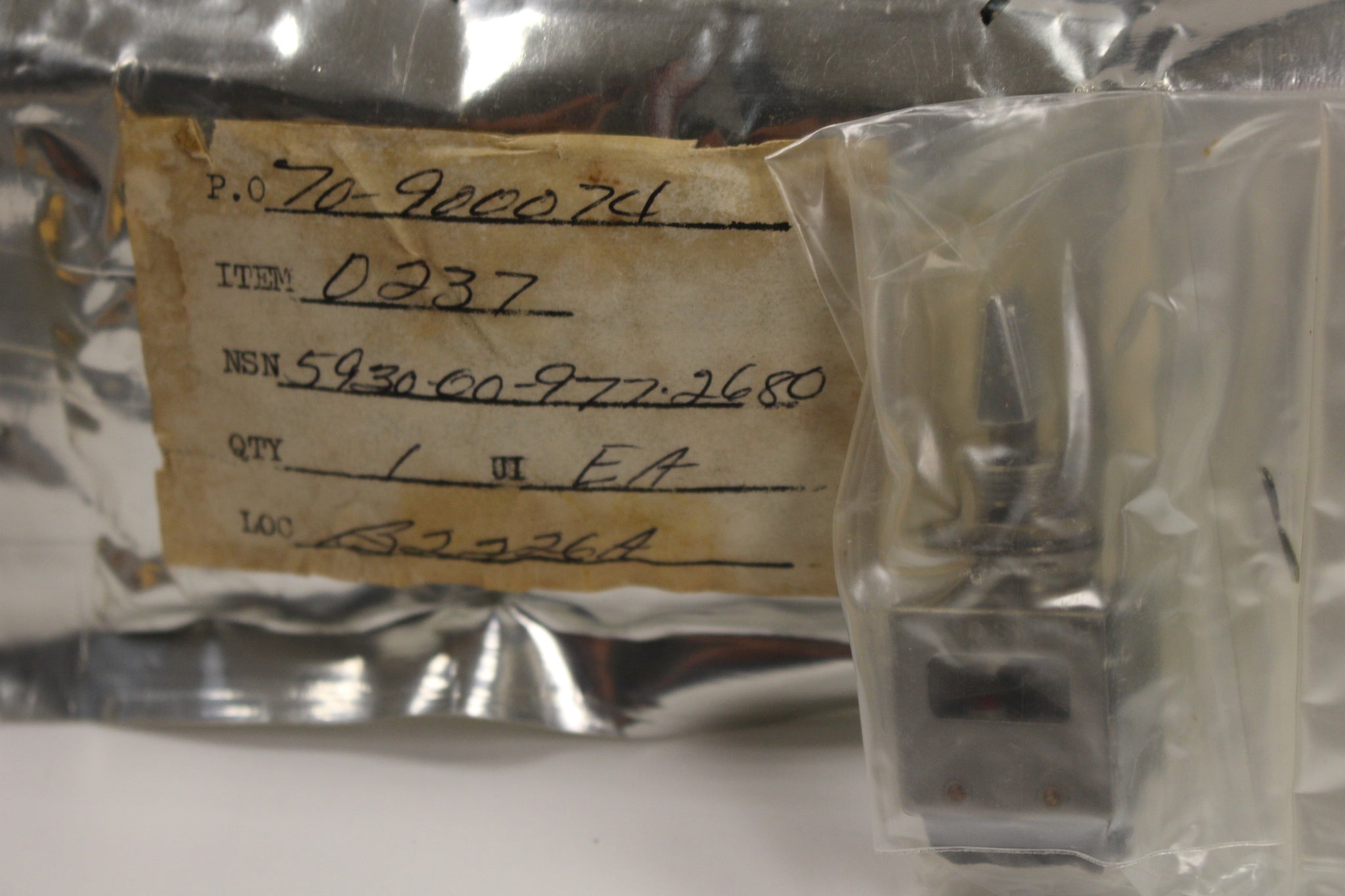

Toggle Switch / Paddle Switch
NSN: 5930-00-977-2680
Part Numbers: 13AT418T2, 7900635-01, 2686509-00, 13AT418T2, 13AT418-T2
Body Style: Bushing mount
Bushing Length: 0.470 inches
Body Length: 0.840 inches
Body Width: 0.719 inches
Body Height: 0.884 inches
Actuator Style: Rectangular
Actuator Height: 0.640 inches
Actuator Width: 0.225 inches
Actuator Position-action Relationship: Center position maintained and left position momentary and right position maintained
Actuator Color: Natural single actuator
Maximum Voltage Rating In Volts: 115.0 ac and 28.0 dc
Inclosure Type: Unenclosed
Mounting Method: Threaded bushing
Thready Qty Per Inch (tpi): 32
Thread Size: 0.469 inches
Nonpile-up Contact Arrangement: 2 pole, double throw, one position momentary, two positions maintained single switch unit
Contact Load Current Rating At Maximum Rated Voltage: 5.000 amperes restive dc and 3.000 amperes inductive dc and 2.400 amperes lamp dc and 5.000 amperes restive ac and 5.000 amperes inductive ac and 1.500 amperes lamp ac
Thread Series Designator: Uns
Terminal Type And Quantity: 6 turret
Condition: New
